Optical Gas Imaging (OGI) is a specialized technique used primarily for detecting gas leaks and visualizing gas emissions. This method is significant in various industries, particularly in oil and gas, to ensure safety, environmental compliance, and operational efficiency. Here’s an overview of its key aspects:
Technology and Equipment: OGI technology typically involves infrared cameras that can detect specific gases. These cameras are designed to visualize gases that are invisible to the naked eye by capturing their thermal signatures. Different gases absorb and emit infrared radiation differently, allowing the camera to detect and visualize their presence.
Types of Gases Detected: OGI cameras are tuned to detect various gases such as methane, sulfur hexafluoride, volatile organic compounds (VOCs), and more. The effectiveness of detection depends on the gas properties and the sensitivity of the camera.
Get in touch with the experts at Quickset Defense Technologies to learn more. See Quickset’s OGI Cameras in action.
An antenna positioner system, often referred to simply as an antenna positioner, is a system that controls the orientation of an antenna to accurately point, track, or maintain a specific direction in space. These systems can be used for various applications, ranging from satellite communication and radar systems to astronomy and remote sensing.
OGI Camera System Applications

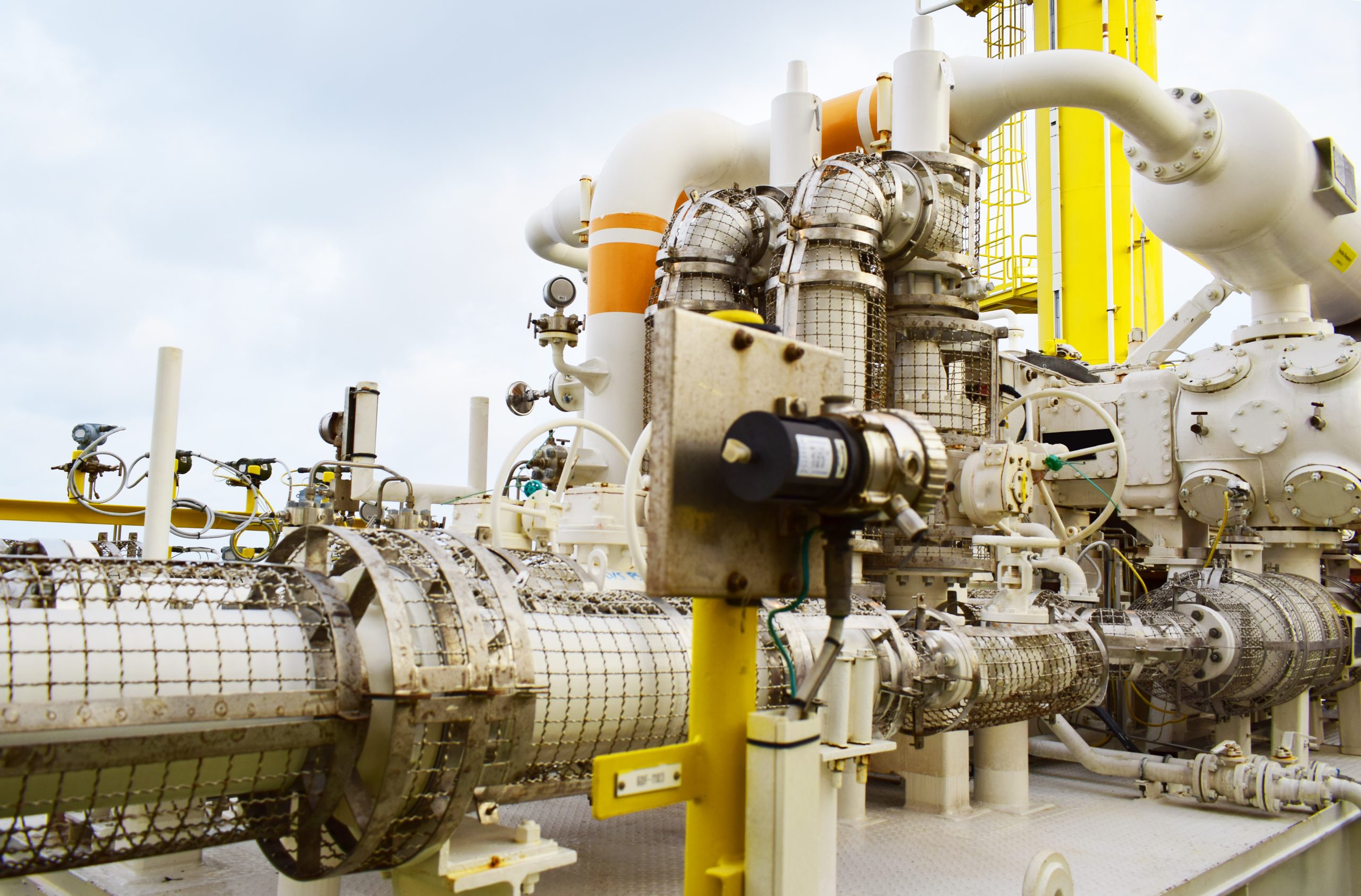

Gas Leak Detection: The primary application of OGI is to identify and locate leaks in gas pipelines, storage tanks, and other infrastructure. This is crucial for preventing accidents and environmental pollution.
Environmental Monitoring: OGI cameras are used to monitor emissions from industrial processes, ensuring compliance with environmental regulations.
Safety: In industrial settings, OGI cameras help in identifying potentially hazardous gas accumulations.
OGI Camera Advantages
Non-invasive and Non-contact: OGI allows for the detection of gases from a safe distance without needing to disrupt operations.
Real-time Visualization: It provides immediate visual confirmation of gas presence, aiding in quick decision-making.
Comprehensive Coverage: Cameras can survey large areas swiftly, making it efficient for large-scale industrial applications.
Regulations and Compliance: Many countries and industries have regulations requiring regular monitoring of gas emissions. OGI is often a preferred method for compliance due to its effectiveness and efficiency.
Future Developments: Advances in technology are continually enhancing the sensitivity and range of gases that can be detected using OGI. Integration with other technologies like drones and AI for data analysis is also expanding its capabilities.
Optical Gas Imaging is a critical tool in modern industry, balancing operational needs with safety and environmental responsibilities. Its technology continues to evolve, offering more sophisticated solutions for gas detection and monitoring.
Learn more about Quickset’s Optical Gas Imaging Camera Systems
Download the Quickset EXO OGI Technical Sheet.
Get in touch with the experts at Quickset Defense Technologies to learn more.
OGI Camera System Features
Optical Gas Imaging (OGI) camera systems are specialized devices designed for detecting and visualizing gas emissions and leaks that are invisible to the naked eye. These systems are equipped with a range of features that make them effective for industrial and environmental applications. Here are some key features of OGI camera systems:
Infrared Imaging Technology: OGI cameras use infrared (IR) imaging technology to detect gas emissions. They are sensitive to specific wavelengths of infrared light that are absorbed and emitted by various gases.
Gas Sensitivity and Specificity: These cameras are tuned to detect specific gases based on their unique spectral absorption properties. Commonly detected gases include methane, sulfur hexafluoride (SF6), and various volatile organic compounds (VOCs). The sensitivity varies among models, with some capable of detecting even minute concentrations of gas.
Thermal Sensitivity: OGI cameras have high thermal sensitivity, allowing them to detect slight differences in temperature between the gas and the background. This feature is crucial for identifying gas leaks in various environmental conditions.
Real-Time Visualization: The cameras provide real-time imaging, enabling operators to see the gas plumes as they are emitted. This immediate feedback is vital for rapid decision-making in gas leak detection and response.
Video Recording and Image Capture: OGI cameras often include capabilities for video recording and still image capture. This feature is essential for documentation, analysis, and reporting of gas emissions and leaks.
Rugged and Portable Design: Many OGI cameras are designed for field use, with rugged construction to withstand harsh industrial environments. Portability is also a key feature, as it allows for easy transportation and use across different sites.
User-Friendly Interface: They typically feature user-friendly interfaces with intuitive controls and display screens that provide clear visuals of the gas plumes.
Integrated GPS and Data Logging: Some models come with integrated GPS and data logging capabilities, allowing users to record the location and details of detected emissions for further analysis and regulatory compliance.
Adjustable Optics and Zoom: OGI cameras may have adjustable optics and zoom features to enhance the detection of gas emissions over various distances and field conditions.
Compatibility with Software Analysis Tools: Many systems are compatible with specialized software for image analysis and reporting. This software can enhance the data captured by the cameras, providing more detailed analysis and reporting capabilities.
Environmental Adaptability: These cameras can operate under a range of environmental conditions, although factors like wind, humidity, and temperature extremes can impact performance.
Safety and Compliance: OGI cameras help industries comply with environmental and safety regulations by providing an effective tool for emissions monitoring and gas leak detection.
Overall, OGI camera systems represent a blend of advanced infrared technology, user-centric design, and practical features for industrial and environmental applications, offering a powerful tool for monitoring and managing gas emissions.
